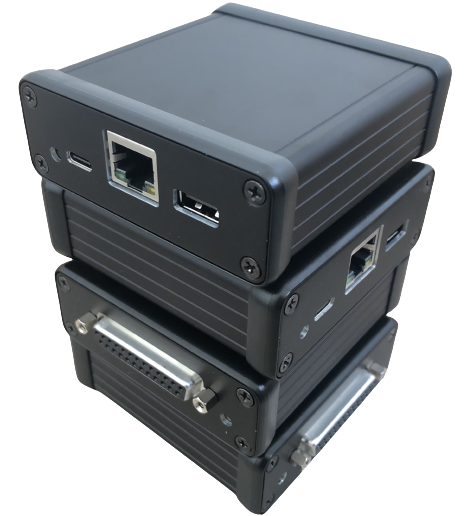

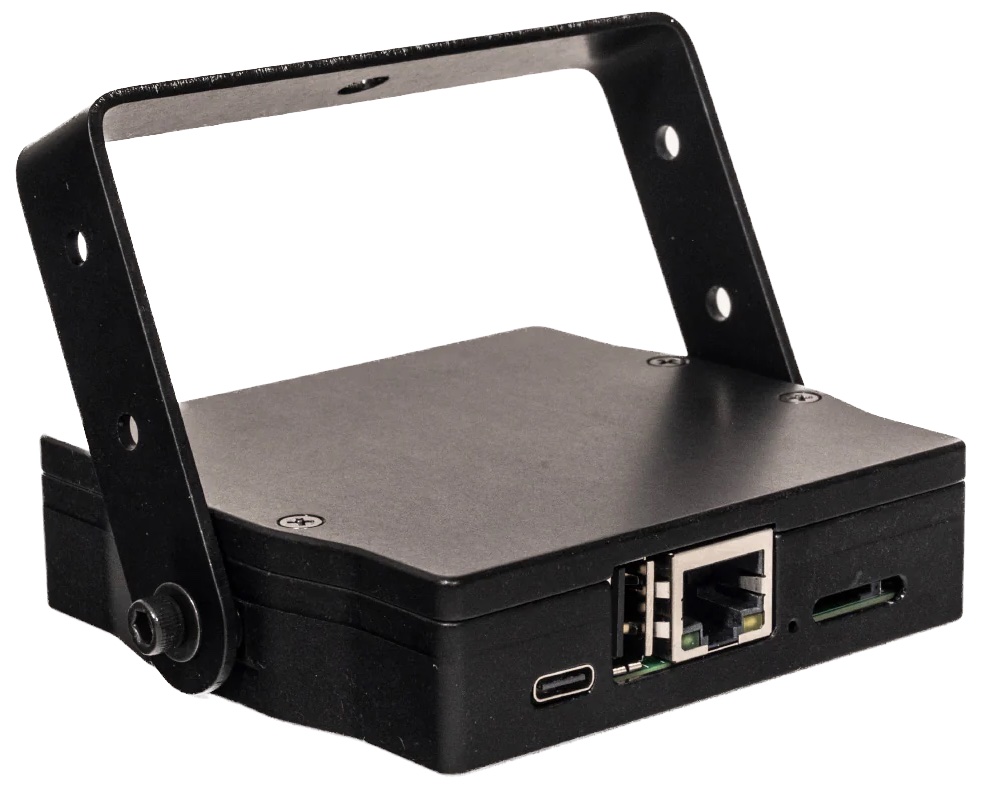

Ether Dream

The Ether Dream is an extensible laser DAC. It supports Ethernet, USB, microSD, and ILDA, and has a set of headers for future expansion. The firmware, protocol, and driver are all modular and open.

Features

• Streaming playback over 100M Ethernet at up to 100kpps
• Multi-interface driver library: supports LSX, ILD SOS, LFI Player, and any software compatible with EzAudDac
• Onboard geometric (perspective) correction, color blanking, and color offset/gain correction
• Playback of ILDA and WAV files from SD card at up to 60kpps
• All features can be controlled with the standard OSC protocol
• ILDA output: balanced X/Y, single-ended R/G/B/I/U1/U2, all 12-bit, plus TTL shutter and controllable interlock
• Easy firmware updates over USB
• Power supply: 8V to 25V DC, via screw terminals or standard 5.5mm jack
• Made in California, USA

Order

Ether Dream is currently in production. The firmware and driver now work with LSX, ILD SOS, and LFI Player. Development is still ongoing, and new firmware updates are posted regularly.

$199.00 - Ether Dream board, assembled and tested $249.00 - Ether Dream (with case and power supply) $399.00 - Ether Dream + LSX Lite $459.00 - Ether Dream + LSX Basic $619.00 - Ether Dream + LSX Pro

For international shipping, please use this page.

© 2010-2012 Jacob Potter.
